Infomations

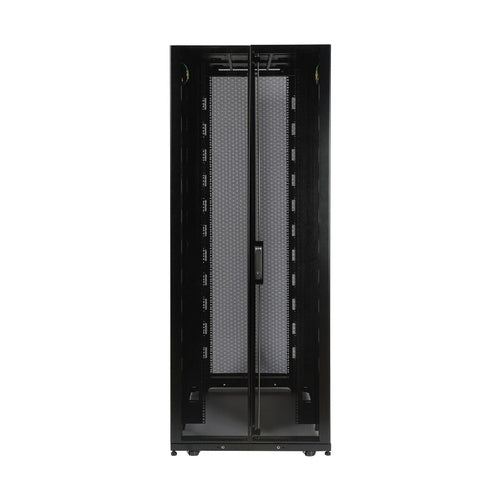

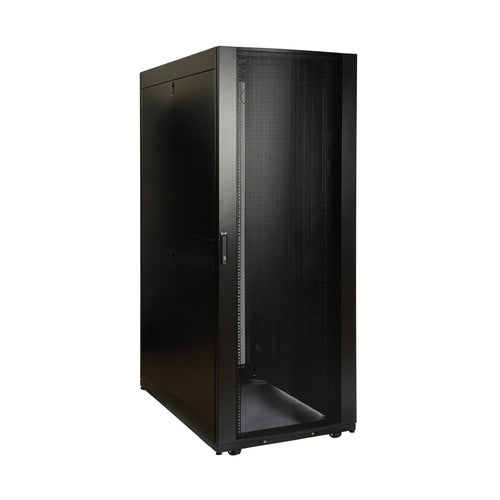

The SR45UBDPWD is a deeper and wider version of our standard 45U SmartRack® cabinet. This enclosure is 1143 millimeters deep (45 inches) compared to the standard 1050 millimeters. This extra depth allows for high-density equipment installations. It allows extra space for moving the cable management back, as well as providing space for mounted equipment that has hot-swap, removable power supplies out the back of the enclosure. It is also 750 millimeters wide (30 inches) compared to the standard 600 millimeters. This extra width allows for high-density equipment installations. It allows cable management and PDU mounting off to the sides of the rack in order to keep these items out of the airflow for proper cooling.

The SR45UBDPWD features a massive front-to-rear ventilation capacity that meets or exceeds server manufacturer requirements. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations.

With its locking, reversible, removable front and rear doors and locking, removable side panels, the SR45UBDPWD provides ultimate equipment safety. The side panels are half size for ease of removal and reinstallation. The split rear door design allows the enclosure to be placed closer to a wall. The SR45UBDPWD meets all requirements toward PCI DSS compliance.

The top panel of the SR45UBDPWD is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing and can be quickly removed without tools. To facilitate cable access, the SR45UBDPWD is open-bottom.

All components of the SR45UBDPWD are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.

It houses 3,500 pounds (1588 kilograms) of standard 19-inch rack equipment in 45U. To simplify deployment, the SR45UBDPWD comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: The casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

45U Rack Enclosure Cabinet Tripp Lite SmartRack Deep Black 1360.8 kg Capacity

Name: 45U Rack Enclosure Cabinet Tripp Lite SmartRack Deep Black 1360.8 kg Capacity
Brand: Tripp Lite
SKU: SR45UBDPWD
Availability: OutOfStock

1 people are viewing this product

€0,00 EUR

Shipping calculated at checkout.

Organize your IT equipment securely and efficiently with the Tripp Lite SmartRack Deep 45U Rack Enclosure Cabinet. This robust cabinet is ideal for data centers, server rooms, and network setups, providing a reliable and safe space for your valuable equipment.

With its deep design, this freestanding rack enclosure can accommodate up to 1360.8 kg of equipment, ensuring that your servers and networking gear are well-protected. The cabinet features sturdy construction and comes with doors and side panels for added security and aesthetics.

Height: 45U
Load Capacity: 1360.8 kg
Weight: 167.8 kg
Color: Black
Type: Freestanding Rack Enclosure

Vendor: Tripp Lite

Type: Rack Cabinets

Oops! Looks like you just missed it!

Free Shipping over $2000

Estimated delivery: May 29 - Jun 02

Infomations

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Features
Rack capacity	45U
Type	Freestanding rack
Maximum weight capacity	1360.8 kg
Product colour	Black
Certification	UL60950; RoHS; CE
Weight & dimensions
Width	750.1 mm
Depth	1219.2 mm
Height	2127.2 mm
Weight	167.8 kg
Packaging data
Package width	812.8 mm
Package depth	1339.8 mm
Package height	2293.6 mm
Package weight	190.5 kg
Logistics data
Country of origin	China
Harmonized System (HS) code	8517.79.0000
Master (outer) case width	812.8 mm
Master (outer) case length	1339.8 mm
Master (outer) case height	2293.6 mm
Master (outer) case gross weight	190.5 kg
Products per master (outer) case	1 pc(s)
Other features
Package dimensions (WxDxH)	812.8 x 1339.8 x 2292.3 mm
